Configuring Multiview for NDI using the Web UI

Now that Multiview for NDI is running, you can configure it in your web browser. Go to http://localhost:8901 in a web browser running on the same machine as Multiview for NDI.

You can also launch the web UI if you know the IP address or hostname of the machine. By default Multiview will listen on port 8901 on all network cards - including VPNs like Tailscale.

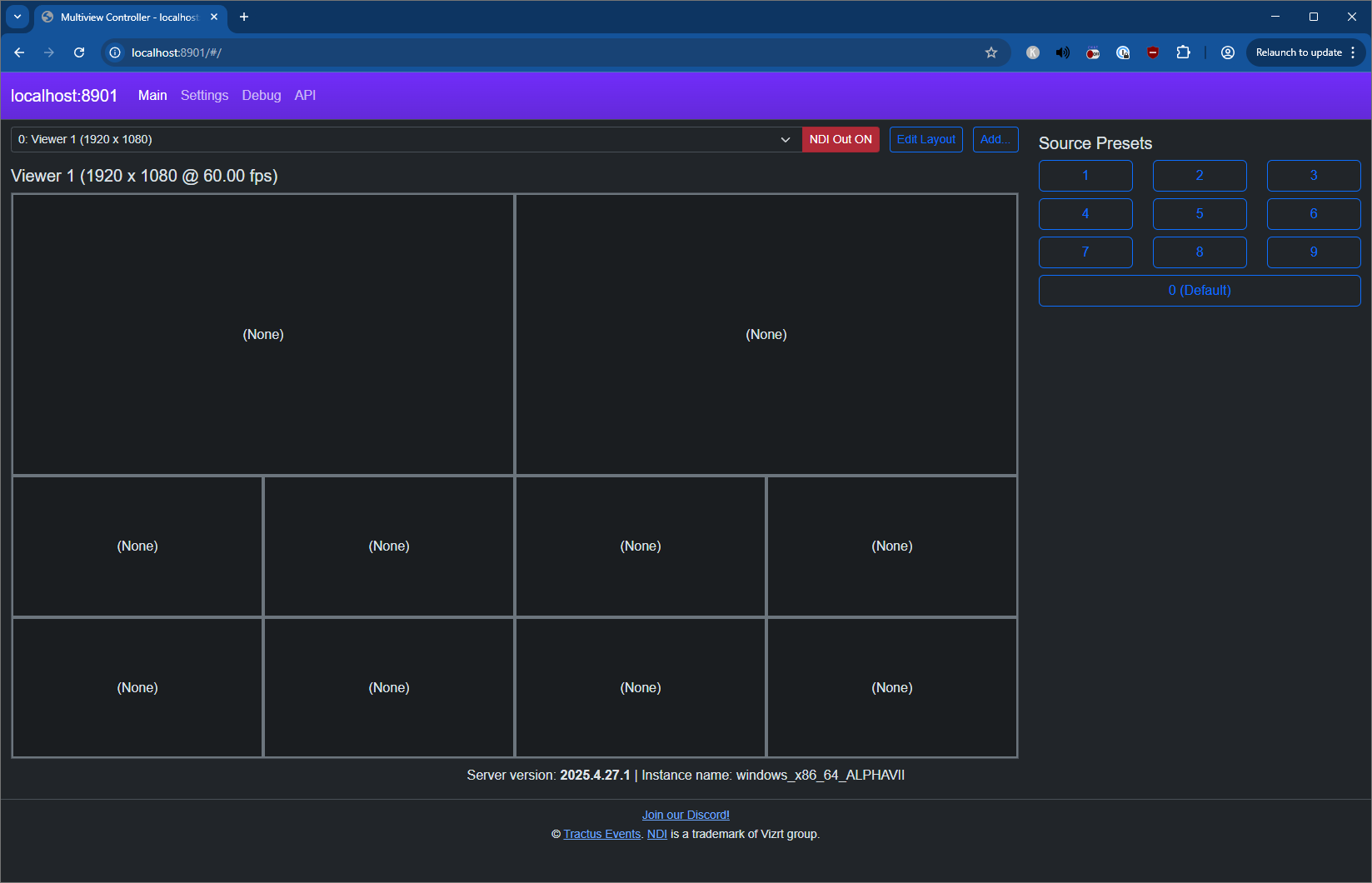

By default, Multiview will create one viewer using the 2 large, 8 small layout.

Setting Sources

To assign a source to a viewport:

1. Click the viewport.

2. Click the computer or device name in the list that appears on the right.

3. Click the source name.

Multiview for NDI will tune into the proxy feed by default.

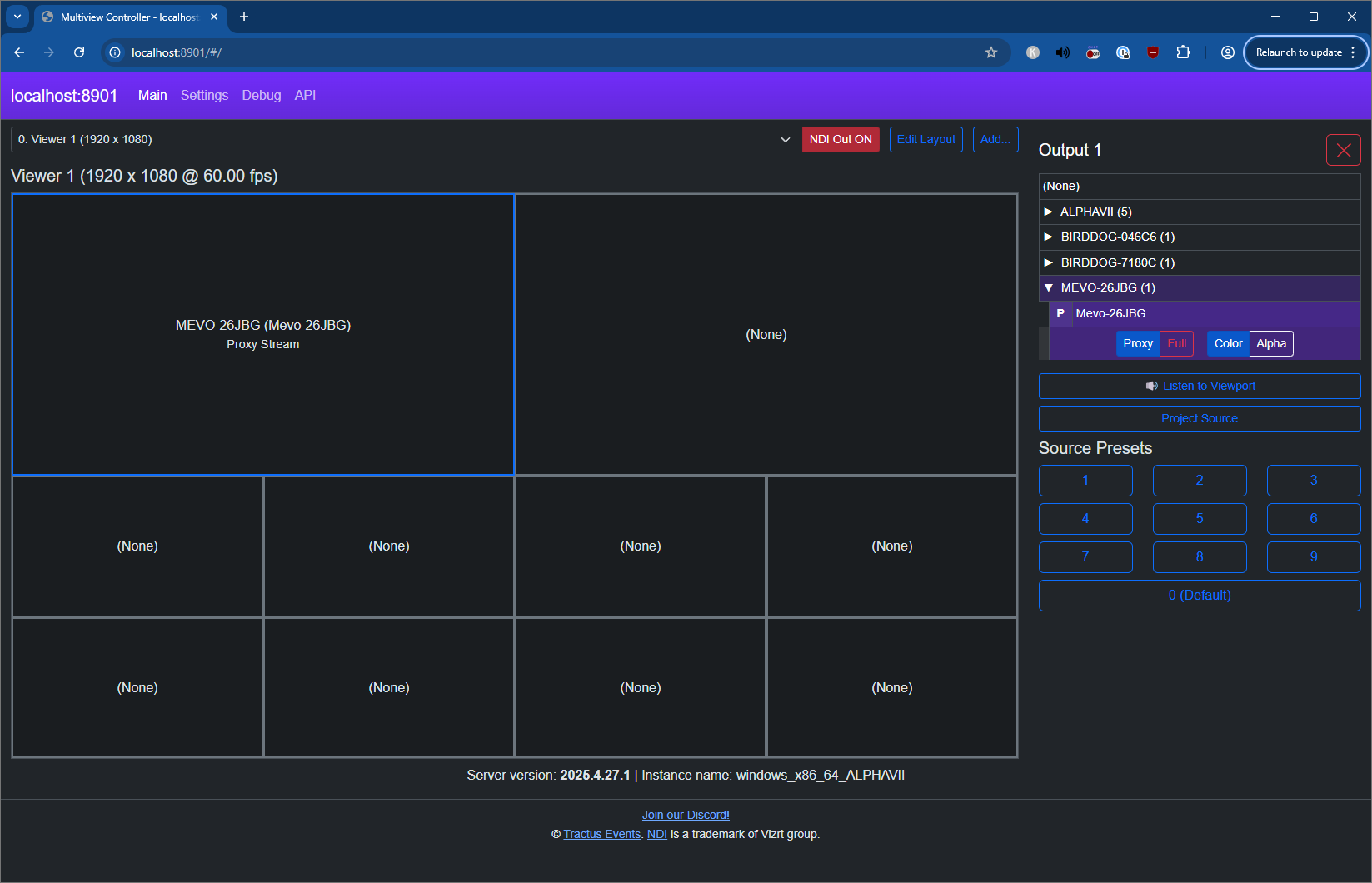

In the example above, viewport 1 has been assigned Mevo-26JBG (MEVO-26JBG).

Multiview for NDI uses nearest neighbor for scaling sources up and down. If you are upscaling proxy feeds and are unsatisfied with the image quality, you may wish to use linear mode, which is done by using the --blitmode command line argument at launch. See Command Line Launch Options.

Changing between Proxy and Full Bandwidth

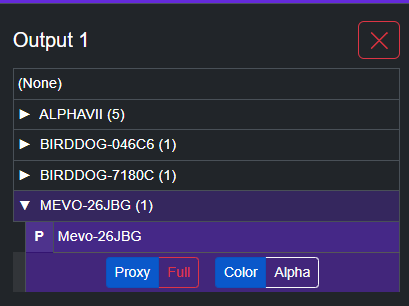

When a viewport is subscribed to a source, you will see either a P for Proxy Feed, or F for Full Feed. Proxy feeds are recommended as they run at lower frame rates and resolutions.

To change subscription modes, click the Proxy or Full button under the source name.

Viewing alpha channel data

If the source is transmitting alpha data, click the Alpha button under the source to view the alpha mask. Note that if the source is not transmitting alpha, this has no effect.

Having one viewport decode color data and the other decode alpha data has no network performance penalty - only one listener per receive mode (proxy or full) is created.

Turn on NDI Output

To send out the current viewer as an NDI source, click the NDI Out Off button at the top of the screen. When NDI output is active, this button will light up in red and say NDI Out ON.

Your multiview layout will now be sent as an NDI source.

Rename a Viewer

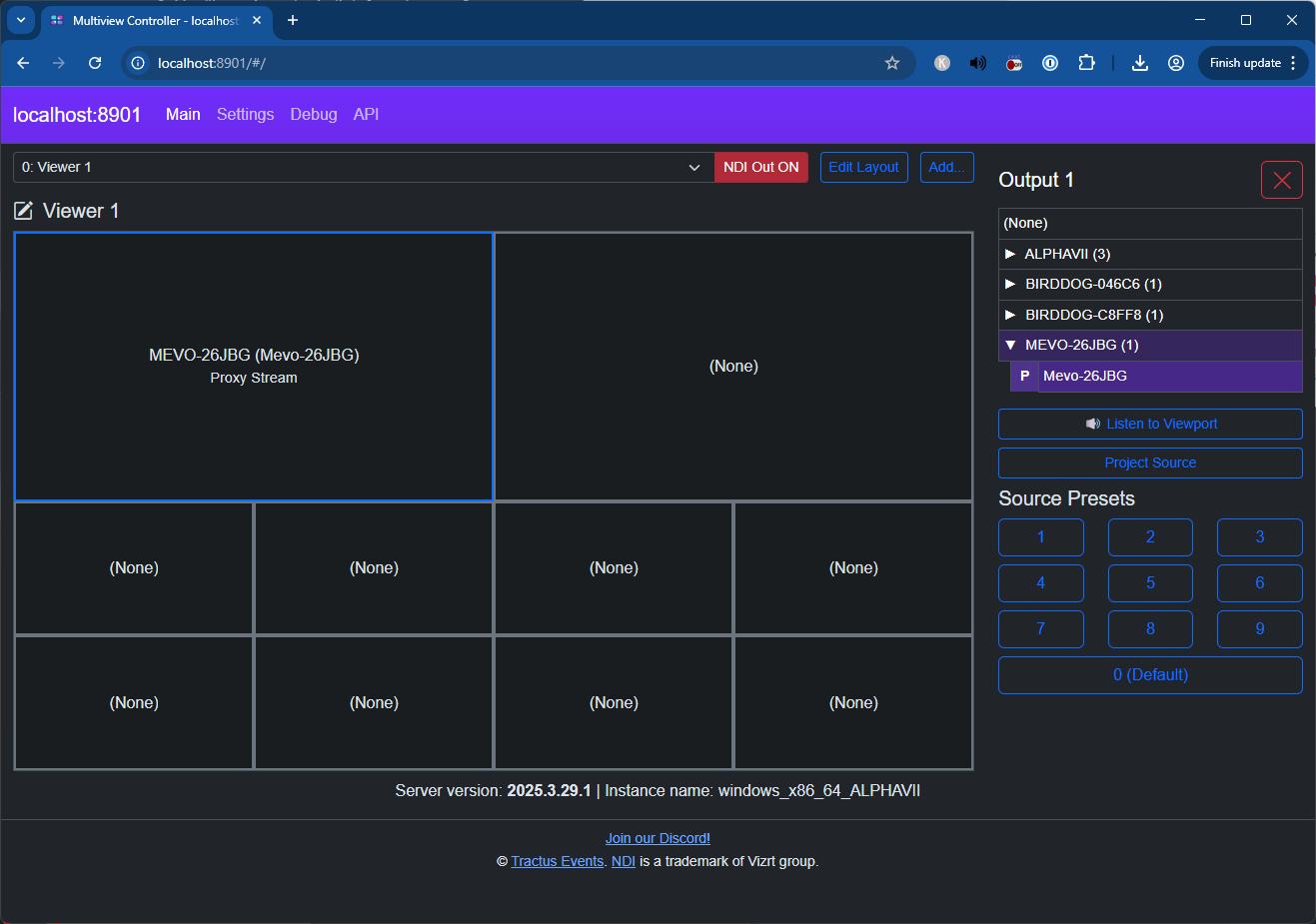

To rename a viewer, hover your mouse over the current viewer name and click it. You'll notice a paper and pencil icon next to the viewer name.

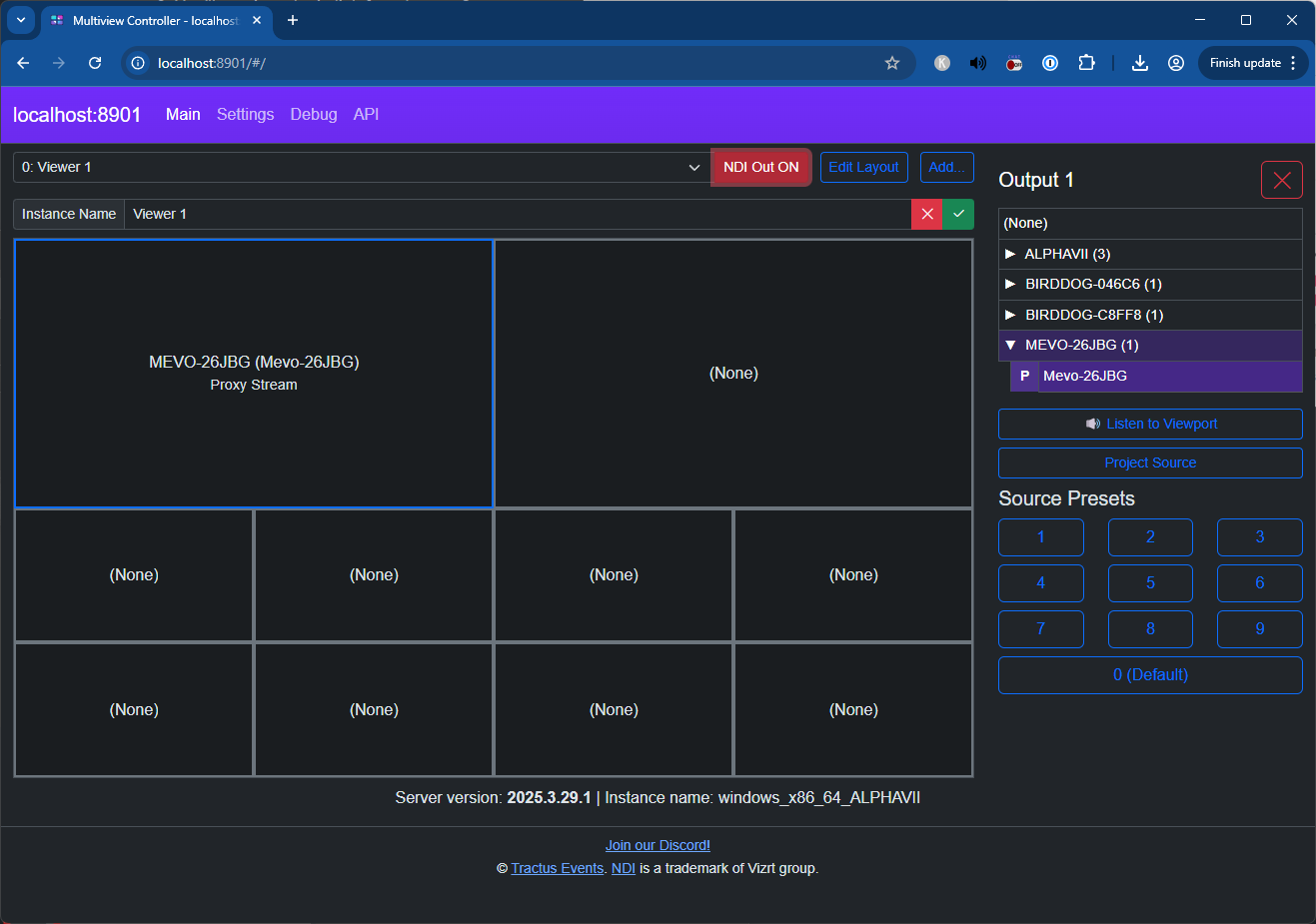

A text box will now appear. Enter in your new viewer name and click the green checkmark button at the end.

If any receivers are subscribed to a viewer that you rename, you may need to update their source subscription.

Saving Source Assignments

When Multiview for NDI is launched, by default Preset 0 is loaded. Once you have assigned all your sources to viewports, hold Shift, and click on the source preset you'd like to assign.

Saving to Preset 0 will ensure your sources are assigned when Multiview is restarted.
